Cold Storage Room Machine Refrigeration Condensing Unit , Freezer Condenser Unit EPFSH3-125

    Buy cheap Cold Storage Room Machine Refrigeration Condensing Unit , Freezer Condenser Unit EPFSH3-125 from wholesalers

    Buy cheap Cold Storage Room Machine Refrigeration Condensing Unit , Freezer Condenser Unit EPFSH3-125 from wholesalers
    • Buy cheap Cold Storage Room Machine Refrigeration Condensing Unit , Freezer Condenser Unit EPFSH3-125 from wholesalers

    Cold Storage Room Machine Refrigeration Condensing Unit , Freezer Condenser Unit EPFSH3-125

    Ask Lasest Price
    Brand Name : ECOOL
    Model Number : EPFSH3-125
    Certification : ISO9001; CCC;QS
    Price : Negotiable
    Supply Ability : 400sets per year
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

    Cold Storage Room Machine Refrigeration Condensing Unit , Freezer Condenser Unit EPFSH3-125


    Cold Storage Room Machine Refrigeration Condensing Unit , Freezer Condenser Unit EPFSH3-125


    Cold Storage Room Machine Refrigeration Compressor Unit EPFSH3-125


    Cold Storage room Compressor unit technical data

    ModelCondensing Temp.Cooling capacity(KW) under diff. Evaporating temp.Compressor motor powerReceiver sizeconnection pipe size(customized available)DimensionOperating weight
    -23-30-40Suction pipeSupply pipe
     C(kw)(L)(mm)(mm)(L×W×H)mm(kg)
    EPFSH3-125351209kw945kw642kw281.254002*133764400*1750*20504320
    451074kw831kw547.8kw

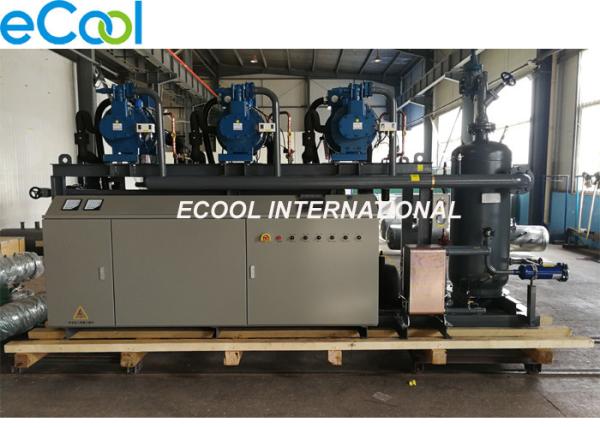

    Cold Storage room Compressor unit Configuration:

    Three 125HP Fusheng screw compressors;

    400 Lliquid receiver;

    gauge panel;

    liquid supply filter;

    suction line filter;

    high and low pressure controller;

    PLC touch screen and electric cabinet;

    oil separator;

    spray liquid cooling system;


    Wide Range of Options of Other Models

    Compressor UnitRefrigeration CapacityEvaporating temperature
    Piston type single-stage parallel unit20HP~350HP7.5℃~-45℃
    Piston type Two-stage parallel unit16HP~180HP-25℃~-65℃
    Screw type single stage parallel unit80HP~600HP5℃~-45℃
    Screw type double-stage parallel unit100HP~600HP-30℃~-65℃

    Cold Storage room Commont Application

    • temperature reduce link of beer brewingRefrigeration system of cold storage, processing warehouse
    • Quick freezing machine e.g. tunnel freezer, spiral freezer
    • Temperature-controlled lab
    • supermarket display cabinet​' refriegration machine

    ECOOL Cold Storage room Compressor Unit Advantages

    • Reliable quality Worry saving Energy saving.
      • Less maintenance and repair is needed. All accessories we used are word famous brand with high quality and performance
      • Every product is tested strictly before getting out of factory including noise test, vibration test, performance test to ensure a service life above 15 years.
      • Technical support
      • Our product doesn't need person to watch the operation, it could turn on and off automatically, adjust the load, record running data, remote control, and fault diagnosis
      • With complete protection system against overload, overheat, HP, LP etc, the unit could work normally even in very bad conditions
      • PLC controller clearly show the system and data
      • Intelligent cloud mode is available without extra charge for Product with PLC controller, it provides more detail on running status, easy monitorby mobile phone or iPad, andmore details for our technician to give you technical suggestionsremotely
      • Energy saving up to 35%.The design makes the unit automatically change the working numbers of compressor depending on system load, which can save your running cost.

    Cold Storage Room Compressor Unit Model Code
