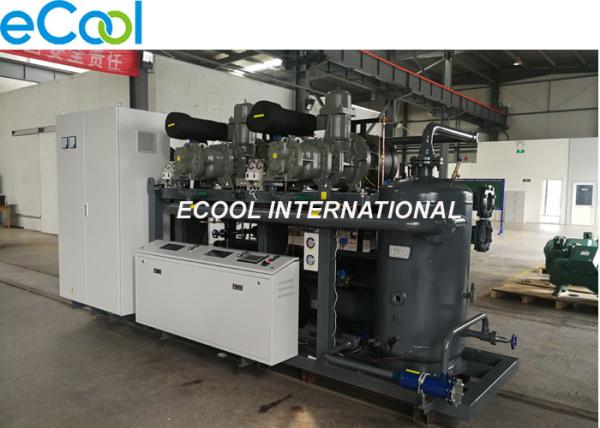

VFC EPKSC 2-1120 Refrigeration Compressor Unit Logistics Cooling Room Refrigeration Machine

Refrigeration machine Specifications

Compressor unit Standard Configuration:

Variable frequency double-stage compressors, 2*120HP=240HP;

suction line filter

electric cabinet and PLC controller

oil separator

oil cooler

gauge panel

high and low-pressure controller

economizer,

injection components

liquid receiver,

liquid supply line filer.

Application

• -25C~-35C blast freezing cold storage, IQF processing Line
• work for quick freezing system such as tunnel freezer, channel freezer, spiral freezer.

ECOOL Compressor Unit Advantages

Worry saving

• With complete protection system against HP, LP ,overload, overheat etc, the unit could work normally even in very bad conditions
• Adopted to multiple refrigerant R404a, R507, R407C, R22

• Our product doesn't need person to watch the operation, it could turn on and off automatically, adjust the load, record running data, remote control, and fault diagnosis
• With complete protection system against overload, overheat, HP, LP etc, the unit could work normally even in very bad conditions
• Easy operated PLC controller
• Intelligent cloud mode is available without extra charge for Product with PLC controller, it provides more detail on running status, easy monitorby mobile phone or iPad, andmore details for our technician to give you technical suggestionsremotely
• Less maintenance and repair is needed. All accessories we used are word famous brand with high quality and performance

Reliable quality

• Every product is tested strictly before getting out of factory including vibration test,noise test, performance test to ensure a service life above 15 years.

Energy saving.

• Energy saving up to 35%.The design makes the unit automatically change the working numbers of compressor depending on system load, which can save your running cost.

​Wide Range of Options of Other Models

• Compressor Unit	Refrigeration Capacity	Evaporating temperature
  Piston type single-stage parallel unit	20HP~350HP	7.5℃~-45℃
  Piston type Two-stage parallel unit	16HP~180HP	-25℃~-65℃
  Screw type single stage parallel unit	80HP~600HP	5℃~-45℃
  Screw type double-stage parallel unit	100HP~600HP	-30℃~-65℃

Model Codes

WHO ARE WE

ECOOL INTERNATIONAL (SHANGHAI) is a technology and engineering company focusing on refrigeration industry.

It specializes in providing cold storage projects, including project plan, design, sales, installation and maintenance；meanwhile, providing high-quality refrigeration equipment, such as multi-head compressor rack, variable frequency screw type compressor rack, air cooler, insulation panel, and refrigeration controlling system.

ECOOL has engineers of 15 years’ experience in design, and a construction team with more than 10 years’ experience. It cooperates with many international brands, such as BITZER, DANFOSS, GUNTER and has professional OEM plants of compressor racks, air coolers and insulation panels in China. With accumulated exporting experience, its products are applied in many industries including food processing, medicine, logistics and chemistry. ECOOL built middle and large sized cold storage projects in African countries - Angola, Congo and Gabon, and its products are exported to South America, Middle East and Southeast Asia.

Under the management of an SJTU MBAer, ECOOL impresses its customers by integrated quality, high working efficiency and excellent service and earns good reputation from customers.

WHAT DO WE DO

• Middle and large sized cold storage exporting and construction, e.g. low-temperature logistic cold storage, middle temperature fresh-keeping storage, super-low temperature processing cold storage
• Refrigeration equipment exporting, e.g. multi-head compressor racks, condensing unit, variable frequency compressor unit, air cooler, cooling coil
• Cold storage project consulting, cold storage maintenance and operation training
